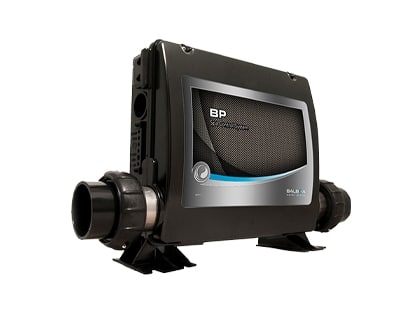

The BP2100G0 is a high-capacity spa control system equipped with a 3.0 kW heater, designed to manage up to three pumps, a blower, and a circulation pump. It supports ozone and lighting systems and is compatible with all Balboa TP Series topside panels. The unit is WiFi-ready when paired with a compatible module, allowing for remote operation via smart devices. Optional expansion boards enable the addition of a blower as well as a single speed pump 2.

Note/:  Factory preset for 2 x dual-speed pumps.  Alternative setups are easily done via test mode.

Specifications:

• Pump 1: Dual-speed or single-speed (with circulation pump)
• Pump 2: Dual-speed or single-speed
• Circulation Pump: Yes
• Blower: Yes
• Ozone: Yes
• Lighting Output: 10 V @ 1 A
• Topside Compatibility: Fits all Balboa TP Series panels
• WiFi: Ready (module required)
• Heater: 3.0 kW
• Dimensions: 500 mm (L, including heater) x 120 mm (W) x 300 mm (H)
•
