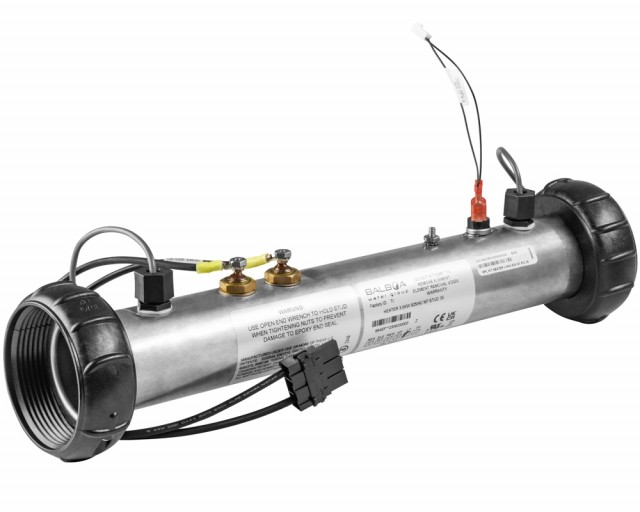

Balboa 3 kW M7 3S heater with three sensors

The 3S version of the Balboa 3 kW heater is made for BP series control systems. It featuresM7 sensors which continuously check flow speed and water temperature. More reliable than conventional pressure switches and flow sensors, M7 heaters require a minimum water flow of 75 liters/minute (4.5 m³/hour).

A third temperature sensor (or thermal protection sensor) is also fitted to the heater: it is an additional security to the heater and stops it if a temperature above 50°C is detected. It is connected to J29 of every BP box, and can replace any BP system heater (except BP200).

Dimensions
Length (without connectors and gaskets): 381 mm (15")
Usually connected to 2 inch pipes

Ofte brukt i Passion bad med elektronikkboks med dele/ typenummer JZ6013X1 g JZ5013X2
